We successfully deliver electrical infrastructure projects of varying complexity, provide long-term guarantees and regularly master new electrical technologies.
Staff years of experience
Expert Engineers & Technicians
Advanced Technologies & Tools
Successful Projects Delivered

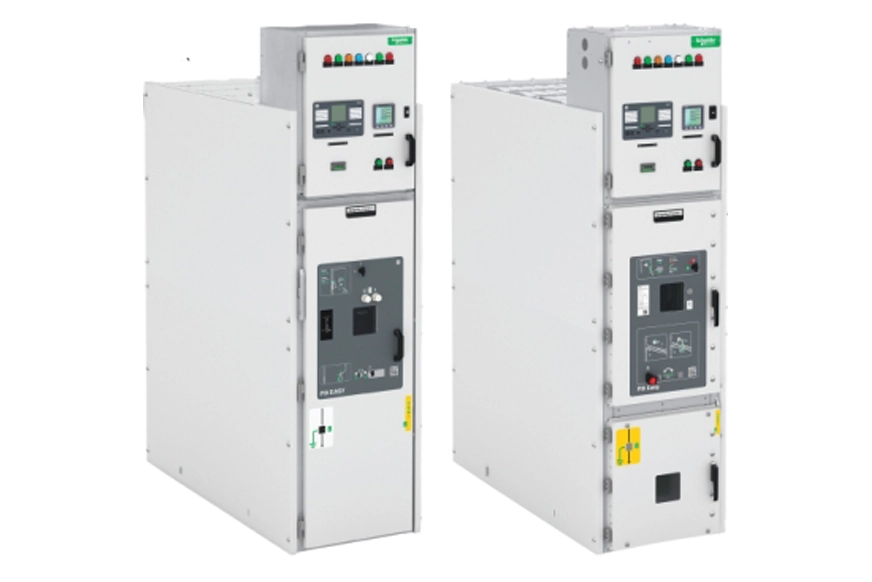

PIX Easy offers you an engineered solution tailored to your specific requirements with a low cost of ownership thanks to reduced maintenance and the highest levels of service continuity. PIX Easy includes enhanced safety for your staff and operators and advanced control and monitoring options.
Proactively restore professional data and multimedia based collaboration and idea sharing. Credibly top line deliverables and cross platform manufactured products. Dramatically facilitate enabled value with seamless growth strategies.
Get A Free Quote
Type Tested & verified according to
IEC 60298, 60265, 60129, 62271-1,
62271-100, 62271-200 & 62271-105
• Rated Voltage 12 & 24 kV
• Rated Current 630 A
• Rated Frequency 50 Hz
• Rated short-time withstand current up to 25 kA

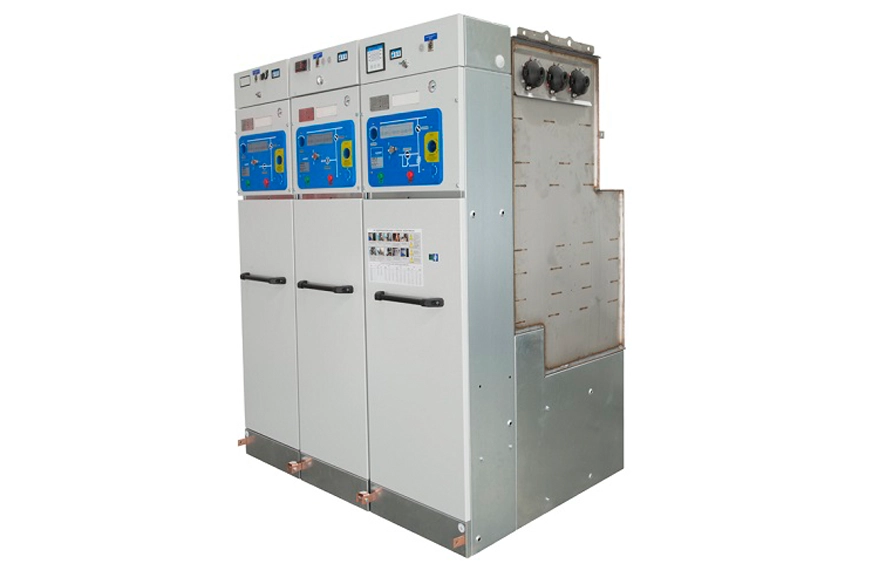

for Air Insulated SF6 Ring Main Unit
• Rated Peak withstand Current 63 kA
• The modular switchgear consists of 4 main
compartments separated from each other by metal frames:
- Cable connection
- Busbar section
- Operating mechanism section
- Low Voltage section
• Designed, manufactured & tested according to: o IEC 62271-100, IEC 62271-102, IEC 62271-103,
IEC 62271-105, IEC 62271- 200, DIN VDE 0670, DIN VDE 0671
• Rated Voltage up to 36 kV
• Colors: Standard RAL 7033 or 7035 or stone paint or a different color upon customer request
• Natural or Forced cooling
• Applications
• Transmission & distribution in Africa the Middle East

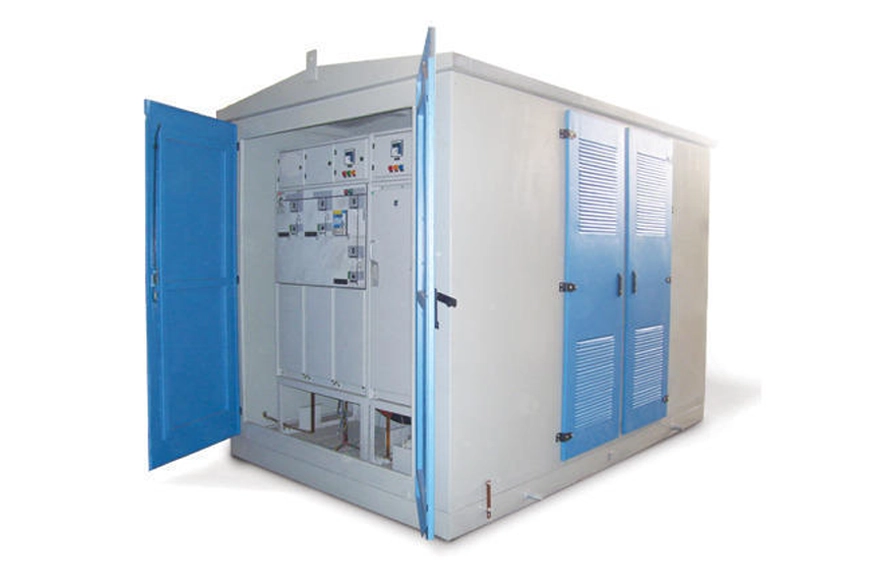

• Solar power plants PackAged Substations up to 24kV
• Transformer compartment
• Transformer power from 50 kVA to 3 MVA
• MV compartment
• Can be equipped with Air or SF6 Ring Main Unit
• The LV & MV compartments are provided with double doors
• Site work is limited to cables connection
• Transformer can be equipped with smart infrastructure for remote monitoring & control
• LV & MV equipment can be equipped with smart infrastructure for remote monitoring & control

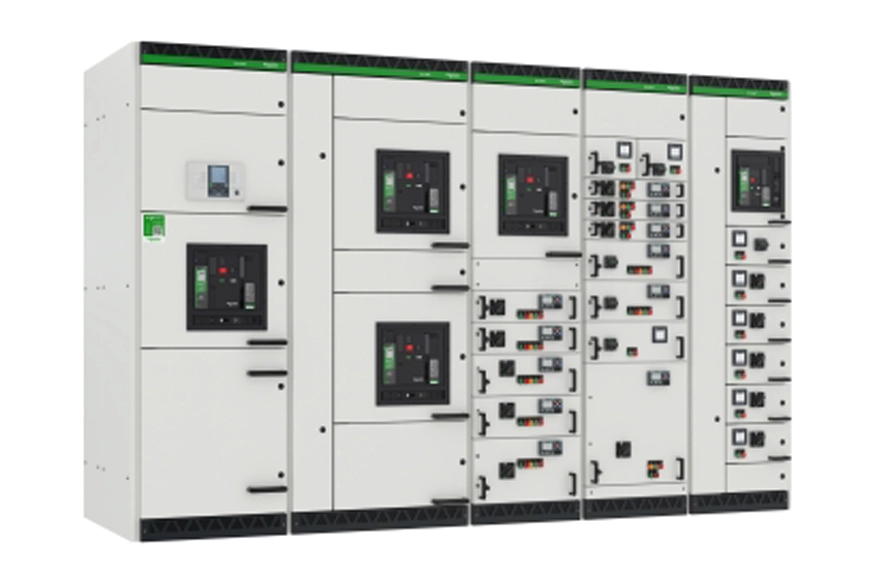

Tested & verified according to IEC 61439 -1,-2
• high power up to 7000 A for blockset & 4000 A for prisma
• High degree of protection up to IP54
• Modular & open-ended
• High safety & reliability equipment using SCHNEIDER
• ELECTRIC LV protection components & switchgear
• Compact & economic
• Increased resistance to harsh environments
• Minimum downtimes
• Thermal Monitoring
• Access information in real time
• Increased energy efficiency: up to 30% energy saving
